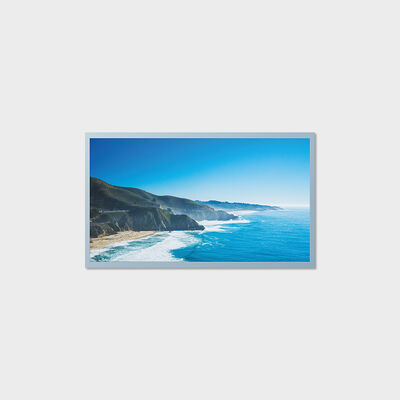

21.5 Inch TFT LCD Display D-LED Type Series With 2000nits Brightness Support Outdoor Application
निःशुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।
WhatsApp:0086 18588475571
वीचैट: 0086 18588475571
स्काइप: sales10@aixton.com
यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।
xउत्पाद विवरण
| नाम | 21.5 इंच का टीएफटी एलसीडी डिस्प्ले | पैनल का आकार | 21.5 ” |
|---|---|---|---|
| संकल्प | 1920*1080 | चमक | 2000 (टाइप) |
| आस्पेक्ट अनुपात | 16:9 | सक्रिय क्षेत्र | 476.06*267.79मिमी |
| रूपरेखा आयाम | 495.6*292.2*13.6 मिमी | इंटरफ़ेस | एलवीडीएस (2 सीएच, 8-बिट) |
| प्रमुखता देना | 21.5 inch high brightness LCD display,outdoor TFT LCD display 2000nits,D-LED type LCD display |
||
उत्पाद विवरण
21.5 Inch TFT LCD Display D-LED Type Series With 2000nits Brightness Support Outdoor Application
High-performance 21.5-inch TFT LCD display featuring D-LED technology with exceptional 2000nits brightness, specifically engineered for demanding outdoor applications.
Product Advantages
- Brightness customization 700-5000cd/m²
- Outdoor sunlight readable
- Low power consumption
- High uniformity up to 85%
- Long lifetime: 50K hours (Typical), up to 80K hours
- Aluminium backlight structure with excellent heat dissipation
- Wide temperature range: -30°C to 80°C
- High shock resistance and exceptional stability
Product Applications
- Bus Station Signage Board
- Intelligent Charging Pile
- Outdoor Electronic News Reading Board
- Intelligent Express Cabinet
- Vending Machine
- Commercial Advertising Machine
- Attractions Information Inquiry Machine
- Community Information Board
Specifications
| Model | LCMA-RX0215GT03-Z200 |
| Brand | Rogin |
| Series | High Brightness LCD Display |
| Panel Size (inch) | 21.5 |
| Brightness | 2000nits |
| Resolution | 1920 × 1080 |
| Active Area | 476.06 × 267.79mm |
| Overall Size | 495.6 × 292.2 × 13.6mm |
| Viewing Angle | 89/89/89/89 |
| Interface Definition | LVDS (2 ch, 8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 1500:1 |
| Aspect Ratio | 16:9 |
| Touch Panel | Without |
| Operating Temperature | -20°C to 70°C |
