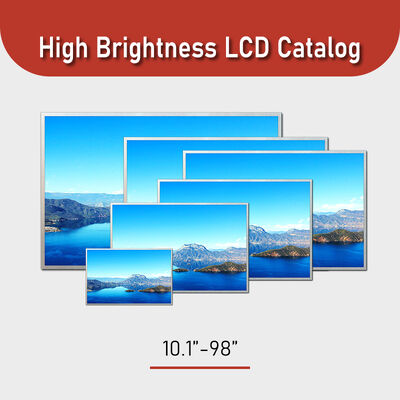

10.1-98" पैनल का आकार उच्च चमक एलसीडी डिस्प्ले 700-5000 टाइप. चमक के साथ
| उत्पत्ति के प्लेस | शेन्ज़ेन |
|---|---|
| ब्रांड नाम | ROGIN |
| न्यूनतम आदेश मात्रा | 5 |
| मूल्य | Price is negotiable. |
| पैकेजिंग विवरण | डिब्बों या लकड़ी के मामले |
| प्रसव के समय | 6-8 सप्ताह |
| भुगतान शर्तें | टी/टी, एल/सी |
| आपूर्ति की क्षमता | स्थान पर्याप्तता |
निःशुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।
व्हाट्सएप:0086 18588475571
वीचैट: 0086 18588475571
स्काइप: sales10@aixton.com
यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।
xउत्पाद विवरण
| पैनल का आकार | 10.1-98 " | चमक | 700-5000 (टाइप।) |
|---|---|---|---|
| प्रमुखता देना | 700-5000 प्रकार चमक एलसीडी डिस्प्ले,10.1-98 प्यानल आकार एलसीडी डिस्प्ले,उच्च चमक एलसीडी डिस्प्ले |
||
उत्पाद विवरण
उच्च Brirghtness एलसीडी प्रदर्शन की उत्पाद सूची
एज प्रकार:
| आकार | नमूना | चमक | संकल्प | शीर्ष (℃) | एए (एमएम) | ओडी (एमएम) | अगर | अंतर |
| 15.6 | LCMA-RX0156GB05-C060 | 600 | 3840*2160 | 0 ~ 50 | 345.6*194.4 | 353*210.1*4.2 | ईडीपी | 1000: 1 |
| 15.6 | LCMA-RX0156GI06-C050 | 500 | 1920x1080 | 0 ~ 60 | 344.16*193.59 | 350.66*205.78*2.89 | LVDS | 1500: 1 |
| 17.0 | LCMA-RX0170GA02-C100 | 1000 | 1280*1024 | (0-50) | 337.92*270.336 | 358.5*296.5*10.3 | LVDS (2 CH, 8-बिट) | 1000: 1 |
| 18.5 | LCMA-RX0185GB06-C100 | 1000 | 1920*1080 | (0-50) | 408.96*230.04 | 430.37*254.6*11.2 | LVDS (2 CH, 8-बिट) | 1000: 1 |
| 18.5 | LCMA-RX0185GB10-C050 | 500 | 1920*1080 | (0-50) | 409.8*230.04 | 431*255*9.2 | LVDS | 1000: 1 |
| 19.0 | LCMA-RX0190GB01-C050 | 500 | 1280*1024 | (0-50) | 374.784*299.82 | 396*324*10.4 | LVDS (2 CH, 8-बिट) | 1200: 1 |
| 21.5 | LCMA-RX0215GL01-C070 | 700 | 1920*1080 | (0-50) | 476.064*267.786 | 497.6*292.2*10.5 | LVDS (2 CH, 8-बिट) | 1000: 1 |
| 21.5 | LCMA-RX0215GB02-C100 | 1000 | 1920*1080 | (-20-80) | 476.64*268.11 | 495.6*292.2*11.3 | LVDS (2 CH, 8-बिट) | 1000: 1 |
| 23.8 | LCMA-RX0238GA01-C150 | 1500 | 1920*1080 | (0-50) | 527.04*296.46 | 557.2*326.6*17.5 | LVDS (2 CH, 8-बिट) | 3000: 1 |
| 23.8 | LCMA-RX0238GI01-C085 | 850 | 1920*1080 | (0-50) | 527.04*269.46 | 543*317.4*11.1 | LVDS (2 CH, 8-बिट) | 1000: 1 |
| 27.0 | LCMA-RX0270GA07-C070 | 700 | 1920*1080 | (0-50) | 597.6*336.15 | 613.6*356.85*10.5 | LVDS (2 CH, 8-बिट) | 3000: 1 |
| 27.0 | LCMA-RX0270GA10-C050 | 500 | 1920*1080 | (0-50) | 597.6*336.15 | 613.6*356.85*10.5 | LVDS (2 CH, 8-बिट) | 3000: 1 |
| 27.0 | LCMA-RX0270GA11-C150 | 1500 | 1920*1080 | (0-50) | 597.6*336.14 | 628*366.4*23.7 | LVDS (2 CH, 8-बिट) | 3000: 1 |
| 27.0 | LCMA-RX0270GB01-C100 | 1000 | 1920*1080 | (0-50) | 597.888*336.312 | 611.5*335.8*13.2 | LVDS (2 CH, 8-बिट) | 1000: 1 |
| 27.0 | LCMA-RX0270GB06-C070 | 700 | 1920*1080 | (0-50) | 597.888*336.312 | 611.5*355.8*15.2 | LVDS (2 CH, 8-बिट) | 1000: 1 |
| 32.0 | LCMA-RX0320GA02-C100 | 1000 | 1920*1080 | (0-50) | 698.4*392.84 | 729.4*424.2*29.5 | LVDS (2 CH, 10-बिट) | 3000: 1 |
| 32.0 | LCMA-RX0320GI01-C100 | 1000 | 3840*2160 | (0-50) | 698.4*392.85 | 751.5*446.01*30.5 | वी-बाय-वन 8 लेन | 3000: 1 |
| 32.0 | LCMA-RX0320GI04-C100 | 1000 | 3840*2160 | (0-50) | 698.4*392.85 | 751.5*446.01*30.5 | वी-बाय-वन 8 लेन | 3000: 1 |
| 43.0 | LCMA-RX0430GL01-C150 | 1500 | 1920*1080 | (0-50) | 941.184*529.416 | 973.2*561.5*29.5 | LVDS (2 CH, 8-बिट) | 1000: 1 |
| 43.0 | LCMA-RX0430GL10-C150 | 1500 | 1920*1080 | (0-50) | 941.184*529.416 | 973.2*561.5*29.5 | LVDS (2 CH, 8-बिट) | 1000: 1 |
| 43.0 | LCMA-RX0430GB12-C050 | 500 | 3840*2160 | (0-50) | 941.18*529.42 | 973.2*561.5*20.3 | वी-बाय-वन 8 लेन | 1200: 1 |
| 43.0 | LCMA-RX0430GR02-C040 | 400 | 1920*1080 | (0-50) | 941.8*529.42 | 961*549.7*17.1 | LVDS (2 CH, 8-बिट) | 1200: 1 |
| 49.0 | LCMA-RX0490GL09-C250 | 2500 | 1920*1080 | (0-50) | 1073.78*604 | 1103.8*634*31.5 | LVDS (2 CH, 8/10-बिट) | 1300: 1 |
| 49.0 | LCMA-RX0490GL10-C150 | 1500 | 3840*2160 | (0-50) | 1073.78*604 | 1103.8*634*31.5 | वी-बाय-वन 8 लेन | 1100: 1 |
| 49.0 | LCMA-RX0490GB03-C060 | 500 | 3840*2160 | (0-50) | 1073.78*604 | 1095.18*630.1*13.8 | LVDS (2 CH, 8/10-बिट) | 1200: 1 |
| 55.0 | LCMA-RX0550GR03-C070 | 700 | 3840*2160 | (0-50) | 1209.6*680.4 | 1233.8*704.6*17.7 | वी-बाय-वन 8 लेन | 1300: 1 |
प्रत्यक्ष प्रकार:
| आकार | नमूना | चमक | संकल्प | शीर्ष (℃) | एए (एमएम) | ओडी (एमएम) | अगर | अंतर |
| 23.8 | LCMA-RX0238GA02-Z350 | 3500 | 1920*1080 | (0-50) | 527.04*269.46 | 554.04*323.53*41 | LVDS (2 CH, 8-बिट) | 3000: 1 |
| 27.0 | LCMA-RX0270GL06-Z080 | 800 | 3840*2160 | (0-50) | 596.74*335.66 | 626*364.4*24 | LVDS (2 CH, 8-बिट) | 1000: 1 |
| 27.0 | LCMA-RX0270GA15-Z150 | 1500 | 1920*1080 | 0 ~ 50 | 597.89*336.31 | 620*359.69*20.1 | LVDS (2 CH, 8-बिट) | 3000: 1 |
| 32.0 | LCMA-RX0320GL17-Z080 | 800 | 3840*2160 | (0-50) | 697.31*292.23 | 727*421*28.9 | ईडीपी (4 लेन) | 1300: 1 |
| 32.0 | LCMA-RX0320GL24-Z150 | 1500 | 1920*1080 | 0 ~ 50 | 698.4*392.85 | 731.9*431.4*53.8 | LVDS | 1200: 1 |
| 43.0 | LCMA-RX0430GL19-Z100 | 1000 | 3840*2160 | (0-50) | 941.18*529.42 | 973.8*567*58.4 | वी-बाय-वन 8 लेन | 1100: 1 |
| 43.0 | LCMA-RX0430GL13-Z200 | 2000 | 1920*1080 | (0-50) | 940.9*529.3 | 973.8*567*58 | LVDS (2 CH, 8-बिट) | 1200: 1 |
| 49.0 | LCMA-RX0490GL04-Z250 | 2500 | 1920*1080 | (0-50) | 1073.8*604 | 1098*628*55 | LVDS (2 CH, 8-बिट) | 1000: 1 |
| 49.0 | LCMA-RX0490GL14-Z350 | 3500 | 3840*2160 | (0-50) | 1073.78*604 | 1106.4*641.6*57.5 | वी-बाय-वन 8 लेन | 1100: 1 |
| 55.0 | LCMA-RX0550GB10-Z200 | 2000 | 1920*1080 | (0-50) | 1209.6*680.4 | 1242.1*718*56.1 | LVDS (2 CH, 10-बिट) | 1200: 1 |
| 55.0 | LCMA-RX0550GB14-Z200 | 2000 | 1920*1080 | (0-50) | 1209.6*680.4 | 1242.1*718*56.1 | LVDS (2 CH, 10-बिट) | 1200: 1 |
| 55.0 | LCMA-RX0550GL24-Z200 | 2000 | 1920*1080 | (0-50) | 1209.6*680.4 | 1242.1*718*58.1 | वी-बाय-वन 8 लेन | 1300: 1 |
| 55.0 | LCMA-RX0550GL30-Z300 | 3000 | 1920*1080 | (0-50) | 1209.6*680.4 | 1242.1*718*58.1 | LVDS (2 CH, 8-बिट) | 1000: 1 |
| 65.0 | LCMA-RX0650GL04-Z200 | 2000 | 1920*1080 | (0-50) | 1428.48*803.52 | 1452.4*827.5*59 | वी-बाय-वन 8 लेन | 1300: 1 |
| 65.0 | LCMA-RX0650GL05-Z200 | 2000 | 3840*2160 | (0-50) | 1428.5*803.5 | 1461*843.1*59.5 | वी-बाय-वन 8 लेन | 1100: 1 |
| 65.0 | LCMA-RX0650GB08-Z200 | 2000 | 1920*1080 | (0-50) | 1428.5*803.5 | 1461*843.1*59.5 | वी-बाय-वन 8 लेन | 1200: 1 |
| 75.0 | LCMA-RX0750GL02-Z200 | 2000 | 3840*2160 | (0-50) | 1649.66*927.94 | 1689*971*66.15 | वी-बाय-वन 8 लेन | 1200: 1 |
| 86.0 | LCMA-RX0860GL03-Z100 | 1000 | 3840*2160 | (0-50) | 1895.04*1065.94 | 1933*1108.5*72.1 | वी-बाय-वन 8 लेन | 1200: 1 |
| 86.0 | LCMA-RX0860GL04-Z200 | 2500 | 3840*2160 | (0-50) | 1895.04*1065.94 | 1933*1108.5*72.1 | वी-बाय-वन 8 लेन | 1200: 1 |
एज प्रकार (व्यापक तापमान):
| आकार | नमूना | चमक | संकल्प | शीर्ष (℃) | एए (एमएम) | ओडी (एमएम) | अगर | अंतर |
| 10.1 | LCMA-RX0101GI02-C120 | 1200 | 1280*800 | (-20-70) | 216.96*135.6 | 230.7*152.55*7 | LVDS (1 CH, 6/8-बिट) | 800: 1 |
| 10.1 | LCMA-RX0101GI01-C100 | 1000 | 1280*800 | (-20-70) | 216.96*135.6 | 229.46*149.1*7.7 | एलवीडी (1 सीएच, 8-बिट) | 800: 1 |
| 10.1 | LCMA-RX101B-1000 | 1000 | 1280*800 | (-20-70) | 216.96*135.6 | 229.46*149.1*7.7 | एलवीडी (1 सीएच, 8-बिट) | 1000: 1 |
| 10.4 | LCMA-RX0104GR02-C150 | 1500 | 1024*768 | (-30-80) | 210.43*157.824 | 227*175.8*9.2 | LVDS (1 CH, 6/8-बिट) | 900: 1 |
| 12.1 | LCMA-RX0121GI01-C150 | 1500 | 1280*800 | (-20-70) | 261.12*163.2 | 278*184*11 | LVDS (1 CH, 6/8-बिट) | 1000: 1 |
| 12.1 | LCMA-RX0121GR01-C100 | 1000 | 1024*768 | (-30-80) | 245.76*184.32 | 260.5*204*8.46 | LVDS (1 CH, 6/8-बिट) | 1000: 1 |
| 12.1 | LCMA-RX0121GR03-C150 | 1500 | 1280*800 | (-20-70) | 261.12*163.2 | 277.7*180.6*9.5 | LVDS (1 CH, 6/8-बिट) | 1200: 1 |
| 12.1 | LCMA-RX0121GB02-C050 | 500 | 1024*768 | (-20-70) | 245.76*184.32 | 260.5*204*9.2 | LVDS (1 CH, 6/8-बिट) | 1200: 1 |
| 13.3 | LCMA-RX0133GB02-C080 | 800 | 1920*1080 | (-20-70) | 293.76*165.24 | 307.6*183.05*6.7 | ईडीपी (2 लेन) | 800: 1 |
| 13.3 | LCMA-RX0133GB03-C100 | 1000 | 1920*1080 | (-20-70) | 293.76*165.24 | 307.6*183.05*7.28 | ईडीपी (2 लेन) | 800: 1 |
| 15.0 | LCAM-RX0150GB05-C150 | 1500 | 1024*768 | (-20-70) | 304.128*228.096 | 326.5*253.5*9.7 | एलवीडी (1 सीएच, 8-बिट) | 1000: 1 |
| 15.0 | LCMA-RX0150GB03-C100 | 1000 | 1024*768 | (-20-70) | 304.128*228.096 | 326.5*253.5*9.7 | एलवीडी (1 सीएच, 8-बिट) | 1000: 1 |
| 15.0 | LCMA-RX0150GR01-C150 | 1500 | 1024*768 | (-20-70) | 304.128*228.096 | 326.5*253.5*9.7 | एलवीडी (1 सीएच, 8-बिट) | 1000: 1 |
| 15.0 | LCMA-RX0150GI01-C100 | 1000 | 1024*768 | (-20-70) | 304.128*228.096 | 326.5*253.5*9.6 | LVDS (1 CH, 6/8-बिट) | 2000: 1 |
| 15.0 | LCMA-RX0150GI02-C100 | 1000 | 1024*768 | (-30-80) | 304.128*228.096 | 326.5*253.5*9.6 | LVDS (1 CH, 6/8-बिट) | 2500: 1 |
| 15.6 | LCMA-RX0156GA02-C100 | 1000 | 1920*1080 | (-20-70) | 344.16*193.59 | 363.8*215.9*8.8 | ईडीपी (2 लेन) | 1000: 1 |
| 15.6 | LCMA-RX0156GI01-C100 | 1000 | 1920*1080 | (-20-70) | 344.16*193.59 | 360*212.3*6.3 | ईडीपी (2 लेन) | 1000: 1 |
| 15.6 | LCMA-RX0156GB03-C100 | 1000 | 1920*1080 | (0-70) | 344.16*193.59 | 363.8*216*9.6 | LVDS (2 CH, 8-बिट) | 1200: 1 |
| 17.0 | LCAM-RX0170GA06-C110 | 1100 | 1280*1024 | (-30-85) | 337.920*270.336 | 358.5*296.5*9.10 | LVDS (2 CH, 8-बिट) | 800: 1 |
| 17.3 | LCMA-RX0173GA01-C080 | 800 | 1920*1080 | (0-70) | 381.888*214.812 | 403*240*13 | LVDS (2 CH, 8-बिट) | 600: 1 |
| 18.5 | LCMA-RX0185GB03-C120 | 1200 | 1920*1080 | (-30-80) | 408.96*230.04 | 430.4*256.6*12 | LVDS (2 CH, 8-बिट) | 1200: 1 |
| 18.5 | LCMA-RX0185GA04-C100 | 1000 | 1920*1080 | (-20-70) | 408.96*230.04 | 430.4*254.6*12.5 | LVDS (2 CH, 8-बिट) | 1000: 1 |
| 21.5 | LCMA-RX0215GB26-C150 | 1500 | 1920*1080 | (-20-70) | 476.64*268.11 | 504.2*295*15.5 | LVDS | 1000: 1 |
| 21.5 | LCMA-RX0215GB08-C150 | 1500 | 1920*1080 | (-20-70) | 476.64*268.11 | 502.8*299.18*16 | LVDS (2 CH, 8-बिट) | 1000: 1 |
| 21.5 | LCMA-RX0215GB28-Z150 | 1500 | 1920*1080 | (-20-70) | 476.64*268.11 | 496*292.5*15.9 | LVDS | 1000: 1 |
| 21.5 | LCMA-RX0215GB16-C100 | 1000 | 1920*1080 | (-20-70) | 476.64*268.11 | 495.6*292.2*9.5 | LVDS (2 CH, 8-बिट) | 1000: 1 |
| 24.0 | LCMA-RX0240GA01-C100 | 1000 | 1920*1080 | (-20-70) | 531.36*298.89 | 556*323.2*17 | LVDS (2 CH, 8-बिट) | 5000: 1 |
| 32.0 | LCMA-RX0320GB01-C150 | 1500 | 1920*1080 | (-20-70) | 698.4*392.85 | 729.4*424.2*29.5 | LVDS (2 CH, 8-बिट) | 1200: 1 |
| 32.0 | LCMA-RX0320GB17-C150 | 1500 | 1920*1080 | (-20-70) | 698.4*392.85 | 729.4* 424.2* 29.5 | LVDS | 1200: 1 |
| 32.0 | LCMA-RX0320GP01-C005 | 50 | 1920*1080 | (-20-70) | 696.96*392.04 | 734*420*17.7 | ईडीपी (2 लेन) | 17: 1 |
| 32.0 | LCMA-RX0320GL18-C120 | 1200 | 1920*1080 | (-20-70) | 698.4*392.85 | 729.4*424.2*29.5 | LVDS (2 CH, 8-बिट) | 1300: 1 |
| 43.0 | LCMA-RX0430GB02-C150 | 1500 | 1920*1080 | (-20-70) | 941.18*529.42 | 973.2*561.5*29.5 | LVDS (2 CH, 8-बिट) | 1200: 1 |
| 55.0 | LCMA-RX0550GB03-C150 | 1500 | 1920*1080 | (-30-80) | 1209.6*680.4 | 1243*725.4*36.7 | LVDS (2 CH, 10-बिट) | / |
प्रत्यक्ष प्रकार (व्यापक तापमान):
|
आकार |
नमूना |
चमक | संकल्प | शीर्ष | एए (एमएम) | ओडी (एमएम) | अगर | अंतर |
| 18.5 | LCMA-RX0185GB09-Z150 | 1500 | 1920*1080 | '-30 ~ 80 | 408.96*230.04 | 431*255*11 | LVDS | 1200: 1 |
| 18.5 | LCMA-RX0185GB09-Z250 | 2500 | 1920*1080 | (-20-70) | 476.64*268.11 | 504.2*295*15.5 | LVDS | 1000: 1 |
| 21.5 | LCMA-RX0215GB28-Z150 | 1500 | 1920*1080 | (-20-70) | 476.64*268.11 | 496*292.5*15.9 | LVDS | 1000: 1 |
| 21.5 | LCMA-RX0215GB21-Z500 | 5000 | 1920*1080 | (-20-70) | 476.6*268.1 | 502.82*294.26*36.2 | LVDS (2 CH, 8-बिट) | 1000: 1 |
| 23.8 | LCMA-RX0238GB03-Z150 | 1500 | 1920*1080 | (-20-70) | 527.04*296.46 | 550*320*20.1 | LVDS (2 CH, 8-बिट) | 1000: 1 |
| 32.0 | LCMA-RX0320GB06-Z200 | 2000 | 1920*1080 | (-20-70) | 698.4*392.85 | 731.9*431.4*56 | LVDS (2 CH, 8-बिट) | 1200: 1 |
| 32.0 | LCMA-RX0320GL20-Z200 | 2000 | 1920*1080 | (-20-70) | 698.4*392.85 | 731.9*431.4*56 | LVDS (2 CH, 8-बिट) | 1300: 1 |
| 43.0 | LCMA-RX0430GB03-Z200 | 2000 | 1920*1080 | (-20-70) | 940.896*529.254 | 965.2*553.4*55 | LVDS (2 CH, 8-बिट) | 1200: 1 |
| 43.0 | LCMA-RX0430GB07-Z250 | 2500 | 1920*1080 | (-20-70) | 940.9*529.25 | 973.8*567*56.4 | LVDS (2 CH, 8-बिट) | 1200: 1 |
| 43.0 | LCMA-RX0430GB13-Z350 | 3500 | 1920*1080 | (-20-70) | 940.9*529.25 | 966.8*554.8*60.7 | LVDS (2 CH, 8-बिट) | 1200: 1 |
| 55.0 | LCMA-RX0550GB07-Z200 | 2000 | 1920*1080 | (-20-70) | 1209*680.4 | 1233.6*704.4*55 | LVDS (2 CH, 10-बिट) | 1000: 1 |
| 55.0 | LCMA-RX0550GL32-Z200 | 2000 | 1920*1080 | (-20-70) | 1209.6*680.4 | 1242.1*718*58.1 | वी-बाय-वन 8 लेन | 1300: 1 |
| 55.0 | LCMA-RX0550GL25-Z350 | 3500 | 1920*1080 | (-20-70) | 1209*680.4 | 1233.6*704.4*55 | वी-बाय-वन 8 लेन | 1300: 1 |
| 55.0 | LCMA-RX0550GB09-Z250 | 2500 | 1920*1080 | (-30-80) | 1209.6*680.4 | 1242.1*718*56.1 | LVDS (2 CH, 8/10-बिट) | / |
| 65.0 | LCMA-RX0650GB04-Z200 | 2000 | 3840*2160 | (-30-80) | 1428.48*803.52 | 1452.4*827.5*61 | वी-बाय-वन 8 लेन | 1200: 1 |
| 65.0 | LCMA-RX0650GB04-Z260 | 2600 | 3840*2160 | (-30-80) | 1428.48*803.52 | 1452.4*827.5*61 | वी-बाय-वन 8 लेन | 1200: 1 |
| 65.0 | LCMA-RX0650GB10-Z350 | 3500 | 3840*2160 | (-30-80) | 1428.48*803.52 | 1454*828.7*58.6 | वी-बाय-वन 8 लेन | 1200: 1 |
| 75.0 | LCMA-RX0750GB02-Z350 | 3500 | 3840*2160 | (-30-80) | 1649.7*927.9 | 1683*975.4*55.3 | वी-बाय-वन 8 लेन | 1200: 1 |
उत्पाद लाभ ►
|
1। चमक क्यूसtomization 700-5000cd/m2। |
उत्पाद व्यवहार्यता ►
|
1.BUS स्टेशन साइनेज बोर्ड। |
|||
 |
|
|
|
