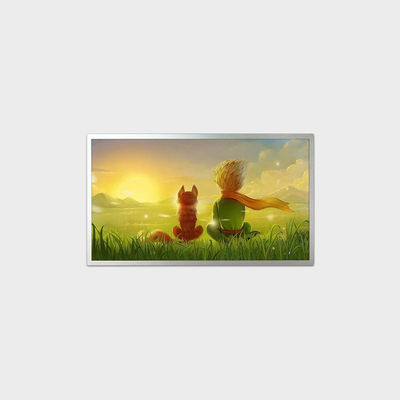

18.5 inch TFT Display Industrial Control Application With 1920*1080 Support LVDS Interface
निःशुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।
WhatsApp:0086 18588475571
वीचैट: 0086 18588475571
स्काइप: sales10@aixton.com
यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।
xउत्पाद विवरण
| नाम | टीएफटी एलसीडी प्रदर्शन | पैनल आकार | 18.5 " |
|---|---|---|---|
| संकल्प | 1920*1080 | चमक | 500 (टाइप।) |
| संचालन तापमान। | 0 ~ 50 ℃ | सक्रिय क्षेत्र | 409.8*230.04 मिमी |
| रूपरेखा आयाम | 431*255*9.2 मिमी | ||
| प्रमुखता देना | 18.5 inch industrial TFT display,high brightness LCD display with LVDS,1920x1080 resolution industrial control monitor |
||
उत्पाद विवरण
18.5 inch TFT Display Industrial Control Application With 1920*1080 Support LVDS Interface
Product Advantage
- 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
- Advanced cutting technology to ensure the yield and precision.
- High reliability with same features as original panel.
- High Anti-vibration.
- Brightness can be customized (500-2500nit).
- Long life time 50K hours(Typ), up to 80K hours.
Product Application
- Commercial signage: Advertising and Price Shelves.
- Public transportation: Bill board for Bus/Metro and light rail.
- Guidance board, Lift advertising board.
- Financial services. Bank call notice board.
- Name card.
- Advertising board on taxi.
Specifications
LCMA-RX0185GB10-C050
| Brand | Rogin |
|---|---|
| Series | TFT LCD Display |
| Panel Size | 18.5 inch |
| Model | LCMA-RX0185GB10-C050 |
| Brightness | 500 |
| Resolution | 1920*1080 |
| Active Area | 409.8*230.04mm |
| Overall Size | 431*255*9.2mm |
| Viewing Angle | 89/89/89/89 |
| Interface Definition | LVDS |
| Backlight Type | WLED |
| Contrast Ratio | 1000:1 |
| Touch Panel | Without |
| Operating Temperature | 0-50 ℃ |
