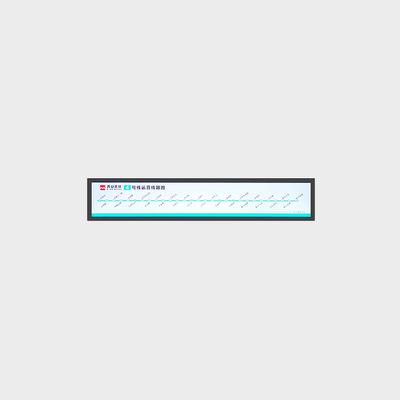

36.6 inch Bar Type TFT Display Support Commercial Display High Brigthenss Solution
निःशुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।
WhatsApp:0086 18588475571
वीचैट: 0086 18588475571
स्काइप: sales10@aixton.com
यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।
xउत्पाद विवरण
| नाम | बार टाइप टीएफटी एलसीडी डिस्प्ले | पैनल आकार | 36.6" |
|---|---|---|---|
| संकल्प | 1920*290 | चमक | 1000 (टाइप।) |
| संचालन तापमान। | -20 ~ 60 ℃ | सक्रिय क्षेत्र | 919.3*139मिमी |
| रूपरेखा आयाम | 956.9*176.5*17.9 मिमी | ||
| प्रमुखता देना | 36.6 inch bar type LCD display,commercial TFT display high brightness,bar type TFT display solution |
||
उत्पाद विवरण
36.6 inch Bar Type TFT Display Support Commercial Display High Brightness Solution
Product Advantage
- 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting)
- Advanced cutting technology to ensure the yield and precision
- High reliability with same features as original panel
- High Anti-vibration
- Brightness can be customized (500-2500nit)
- Long life time 50K hours(Typ), up to 80K hours
Product Application
- Commercial signage: Advertising and Price Shelves
- Public transportation: Bill board for Bus/Metro and light rail
- Guidance board, Lift advertising board
- Financial services. Bank call notice board
- Name card
- Advertising board on taxi
Specifications
LCMA-RX0366TA01-C100
| Brand | Rogin |
|---|---|
| Series | Bar Type TFT LCD Display |
| Panel Size | 36.6 inch |
| Model | LCMA-RX0366TA01-C100 |
| Brightness | 1000nits |
| Resolution | 1920*290 |
| Active Area | 919.3*139mm |
| Overall Size | 956.9*176.5*17.9mm |
| Viewing Angle | 89/89/89/89 |
| Interface Definition | LVDS (2 ch, 8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 4000:1 |
| Touch Panel | Without |
| Operating Temperature | -20-60 ℃ |
