28.8 Inch Bar Type TFT Display Support Commercial Display Customized Brightness Solution
निःशुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।
WhatsApp:0086 18588475571
वीचैट: 0086 18588475571
स्काइप: sales10@aixton.com
यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।
xउत्पाद विवरण
| नाम | बार टाइप टीएफटी एलसीडी डिस्प्ले | पैनल आकार | 28.8" |
|---|---|---|---|
| संकल्प | 1920*560 | चमक | 700 (टाइप) |
| संचालन तापमान। | 0 ~ 50 ℃ | सक्रिय क्षेत्र | 698.4*203.7 मिमी |
| रूपरेखा आयाम | 732*238.55*27.1 मिमी | ||
| प्रमुखता देना | 28.8 inch bar type LCD display,commercial bar type TFT display,customizable brightness bar display |
||
उत्पाद विवरण

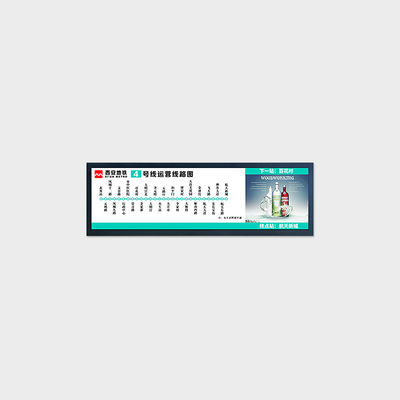

28.8 Inch Bar Type TFT Display Support Commercial Display Customized Brightness Solution
Product Advantage
- 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
- Advanced cutting technology to ensure the yield and precision.
- High reliability with same features as original panel.
- High Anti-vibration.
- Brightness can be customized (500-2500nit).
- Long life time 50K hours(Typ), up to 80K hours.
Product Application
- Commercial signage: Advertising and Price Shelves.
- Public transportation: Bill board for Bus/Metro and light rail.
- Guidance board, Lift advertising board.
- Financial services. Bank call notice board.
- Name card.
- Advertising board on taxi.
Specifications
LCMA-RX0288TB02-C070
| Brand | Rogin |
|---|---|
| Series | Bar Type TFT LCD Display |
| Panel Size | 36.6 inch |
| Model | LCMA-RX0288TB02-C070 |
| Brightness | 700nits |
| Resolution | 1920*560 |
| Active Area | 698.4*203.7mm |
| Overall Size | 732*238.55*27.1mm |
| Viewing Angle | 89/89/89/89 |
| Interface Definition | LVDS (2 ch, 8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 1200:1 |
| Touch Panel | Without |
| Operating Temperature | 0-50 ℃ |
