10.1 inch TFT LCD Display Outdoor 1000nits High Brightness Solution
निःशुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।
WhatsApp:0086 18588475571
वीचैट: 0086 18588475571
स्काइप: sales10@aixton.com
यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।
xउत्पाद विवरण
| पैनल आकार | 10.1" | संकल्प | 1280*800 |
|---|---|---|---|
| चमक | 1000 (टाइप।) | आस्पेक्ट अनुपात | 16:9 |
| सक्रिय क्षेत्र | 216.96*135.6मिमी | रूपरेखा आयाम | 229.46*149.1*7.7मिमी |
| प्रमुखता देना | 10.1 inch high brightness LCD display,outdoor TFT LCD display,1000nits high brightness screen |
||
उत्पाद विवरण

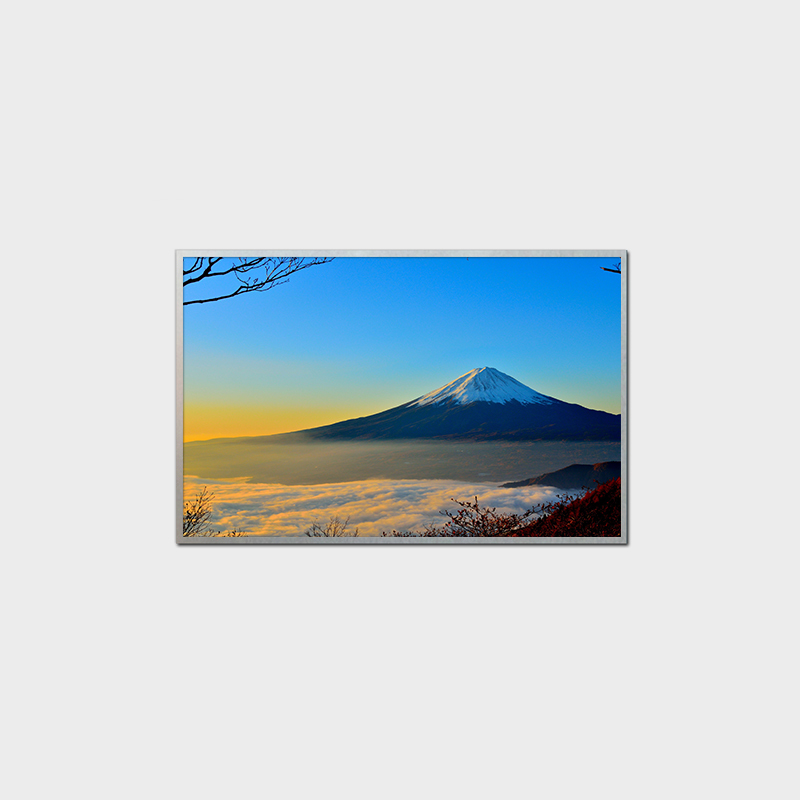

10.1 inch TFT LCD Display Outdoor 1000nits High Brightness Solution
High Brightness LCD Product Features
- Brightness customization 700-5000cd/m²
- Outdoor sunlight readable
- Low power consumption
- High uniformity up to 85%
- Aluminium backlight structure with good heat dissipation
- Wide temperature range up to -30°C-80°C
- High shock resistance and high stability
High Brightness LCD Product Applications
- Bus Stop Station
- Intelligent Charging Pile
- Outdoor Electronic News Reading Board
- Intelligent Express Cabinet
- Vending Machine
- Commercial Advertising
- Attractions Information Inquiry Machine
- Community Information Board
High Brightness LCD Data Sheet
LCMA-RX101B-1000
| Brand | Rogin |
|---|---|
| Series | High Brightness LCD Display |
| Panel Size (inch) | 10.1 |
| Model | LCMA-RX101B-1000 |
| Brightness | 1000 |
| Resolution | 1280*800 |
| Active Area | 216.96*135.6 |
| Overall Size | 229.46*149.1*7.7 |
| Viewing Angle | 80/80/80/80 |
| Interface Definition | LVDS (2 ch, 8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 1000:1 |
| Aspect Ratio | 16:9 |
| Touch Panel | Without |
| Operating Temperature | -20~70℃ |
