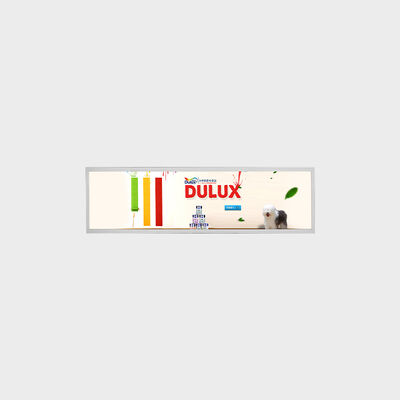

Bar-Type TFT LCD Display Module for Automotive Instrument Cluster & Vehicle Application

उत्पत्ति के प्लेस शेन्ज़ेन
ब्रांड नाम ROGIN
मॉडल संख्या एलसीएमए-आरएक्स0194टीए01-सी070
न्यूनतम आदेश मात्रा 5
मूल्य Price is negotiable.
पैकेजिंग विवरण डिब्बों या लकड़ी के मामले
प्रसव के समय 6-8 सप्ताह
भुगतान शर्तें टी/टी, एल/सी
आपूर्ति की क्षमता पर्याप्तता
उत्पाद विवरण
नाम बार प्रकार एलसीडी पैनल का आकार 19.4"
संकल्प 1920*519 चमक 700 (टाइप)
संचालन तापमान। 0 ~ 50 ℃ सक्रिय क्षेत्र 476.6*129मिमी
रूपरेखा आयाम 503.2*156.2*14.5 मिमी इंटरफ़ेस एलवीडीएस (2 सीएच, 8-बिट)
प्रमुखता देना

Bar-Type TFT LCD automotive display

,

Vehicle instrument cluster LCD module

,

Bar-Type LCD for car dashboard

एक संदेश छोड़ें
उत्पाद विवरण
Bar-Type TFT LCD Display Module for Automotive Instrument Cluster & Vehicle Application
High-performance bar-type TFT LCD display module specifically designed for automotive instrument clusters and vehicle applications, offering exceptional reliability and customization options.
Product Advantages
  • Advanced manufacturing with 3 cutting machines and 2 production lines supporting lengths up to 1.7m (75 inch cutting)
  • Precision cutting technology ensuring high yield and dimensional accuracy
  • High reliability with identical features to original equipment panels
  • Superior anti-vibration performance for automotive environments
  • Customizable brightness ranging from 500-2500 nits
  • Extended lifespan: 50,000 hours typical, up to 80,000 hours maximum
Product Applications
  • Commercial signage: Advertising displays and price shelves
  • Public transportation: Bus, metro, and light rail billboards
  • Guidance boards and elevator advertising displays
  • Financial services: Bank call notice boards
  • Identification cards and bus stop/station displays
  • Taxi, bus, and subway advertising boards
Bar-Type TFT LCD Display Module for Automotive Instrument Cluster & Vehicle Application 0 Bar-Type TFT LCD Display Module for Automotive Instrument Cluster & Vehicle Application 1 Bar-Type TFT LCD Display Module for Automotive Instrument Cluster & Vehicle Application 2 Bar-Type TFT LCD Display Module for Automotive Instrument Cluster & Vehicle Application 3
Technical Specifications
Model: LCMA-RX0194TA01-C070
Brand Rogin
Series Cutting (Bar) Type LCD Display
Panel Size 19.4 inch
Brightness 700 nits (Support customized)
Resolution 1920 × 519
Active Area 476.6 × 129 mm
Overall Size 503.2 × 156.2 × 14.5 mm
Interface Definition LVDS (2 ch, 8-bit)
Backlight Type WLED
Contrast Ratio 3000:1
Touch Panel Without
Operating Temperature 0~50 ℃
